Get your SubZero Parts below:

click here to order your SubZero Switches Now!
Switches

click here to order your SubZero Evaporators Now!
Evaporators

On Sale!
click here to order your SubZero Heat Exchangers Now!
Heat Exchangers

NOW Available!
click here to order your SubZero Compressors Now!
Compressors

NOW Available!

Ice Maker Replacements
Models:

IceMaker Part#'s:

click on your Model# or Part# below to go that specific Ice Maker Part
Ice Makers

22IM, 201FD, 211, 241, 245, 249FF, 251, 2411, 2511, 3211, 361,
501f, 511, 532, 542, 550, 561, 590, 680, 685-2/3, 690, 695-2/3,
700, 700-2, 700TCI, 700TFI, 700TCI-3, 700TFI-3, 700BCI-3, 700BFI-3, 736TCI-3, 736TFI, 801

4200520PR

550, 611, 650

4200522PR

201RIM, 245

4201760PR

532, 542, 561, 601F, 632, 642, 601F-2, 632-2, 642-2

7002738PR

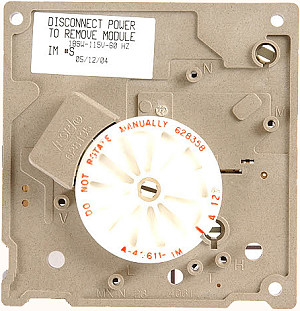

Icemaker Head Module

W10122536PR

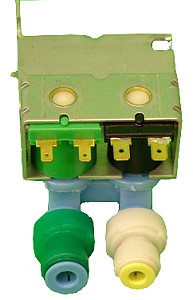

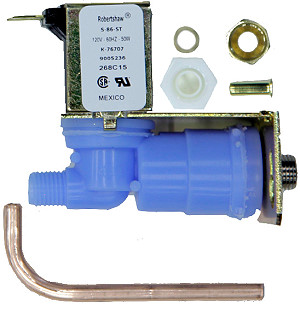

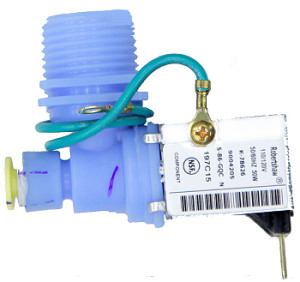

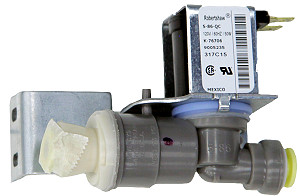

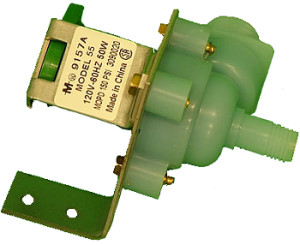

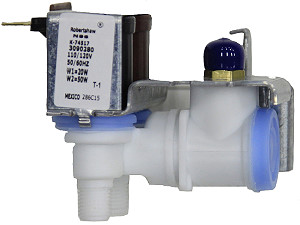

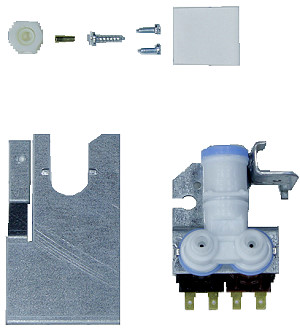

Icemaker Inlet Valves - Dual & Single
590 - Dual Water Valve
680, 690 - Dual Water Valve
Replacement Harnesses

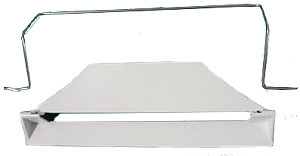

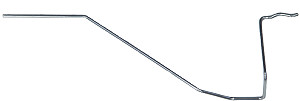

Shut off Arms
700TCI, 700TFI, 700BFI - Arm Assembly

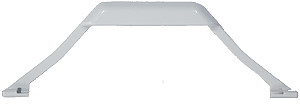

Rudder Arms
Ice Maker
Model
Buy Now!

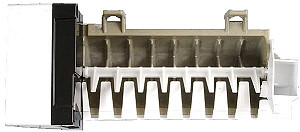

4200520PR Ice Maker
Replaces Part# 3140070

4200520PR Ice Maker

22IM, UC24C, 201FD, 211, 241, 244, 245, 249FF, 251, 2411, 2511, 3211, 361, 501f, 511, 532, 542, 550, 561, 590, 680, 690, 685-2/3, 695-2/3, 700, 700-2, 700TCI-3, 700TFI-3, 700BCI-3, 700BFI-3, 736TCI-3, 736TFI, 801
Modular icemaker only, no harness or arm (use from old icemaker or order new harness or wire arm, if needed), plastic module under white cover

22IM
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7014702
NOTE: FOR SHUT-OFF ARM, ORDER 7016662
201FD/211
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7014702
NOTE: FOR SHUT-OFF ARM, ORDER 7012821
241/251
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7014702
NOTE: FOR SHUT-OFF ARM, ORDER 7012821
244
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7014702
NOTE: FOR SHUT-OFF ARM, ORDER 7016481
245
Use Starting With Serial #717272
Prior to Serial #717272, Use Pt# 4201760
NOTE: FOR WIRE HARNESS, ORDER 7014702
NOTE: FOR SHUT-OFF ARM, ORDER 7012821
249FF
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7020748
NOTE: FOR SHUT-OFF ARM, ORDER 7016481
2411/2511
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7014702
NOTE: FOR SHUT-OFF ARM, ORDER 7012821
361/3211
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7014702
NOTE: FOR SHUT-OFF ARM, ORDER 7012821
501F
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7015689
NOTE: FOR SHUT-OFF ARM, ORDER 7014697
511
Use Regardless of Serial Number
NOTE: ALSO SEE 4202740
NOTE: FOR WIRE HARNESS, ORDER 7015689

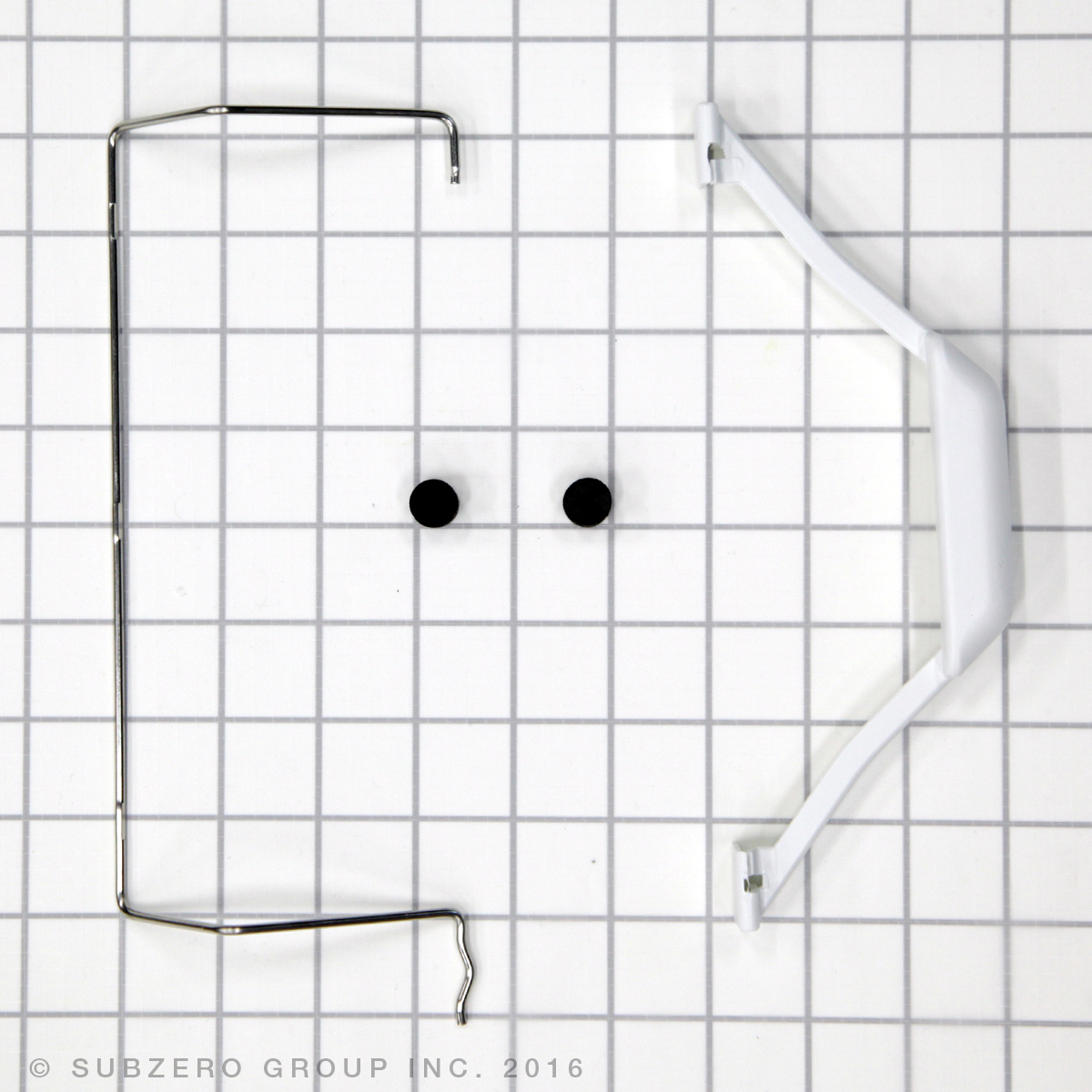

NOTE: FOR SHUT-OFF ARM, ORDER 4202730
532
Use Prior to Serial #1283390 & between
#1284539 to #1350590

From Serial#1283390 to #1284539
and starting with Serial #1350590,
Use Pt# 7002738
NOTE: ALSO SEE 4202750
NOTE: FOR WIRE HARNESS, ORDER 7015689
NOTE: FOR SHUT-OFF ARM, ORDER 7014697
542
Use Prior to Serial #1351190
Starting with Serial #1351190 Use Pt# 7002738
NOTE: ALSO SEE 4202750
NOTE: FOR WIRE HARNESS, ORDER 7015689
NOTE: FOR SHUT-OFF ARM, ORDER 7014697
550
Use From Serial #681166 to #681565, and
From #M702716/P700765 to #M/P1274690,
and Starting with Serial #1275889

Prior to Serial #681166 & from #681565
to #M702716/P700765
Use Pt# 7002748
From #1274690 to #1275889
Use Pt# 7002734
NOTE: ALSO SEE 4202740
NOTE: FOR WIRE HARNESS, ORDER 7015689
NOTE: FOR SHUT-OFF ARM, ORDER 4202730
561
Use Prior to Serial #1350840
Starting with Serial #1350840 Use Pt# 7002738
NOTE: ALSO SEE 4202750
NOTE: FOR WIRE HARNESS, ORDER 7015689
NOTE: FOR SHUT-OFF ARM, ORDER 7014697
590
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7015689
NOTE: FOR SHUT-OFF ARM, ORDER 4202730
680/690
Use Regardless of Serial Number
NOTE: Must Also Order Plug Adaptor 7024962
NOTE: Must Also Order Shutoff Arm 7026359
685-2/3
Use Prior to Serial #2662411
NOTE: Must Also Order Plug Adaptor 7024962
NOTE: Must Also Order Shutoff Arm 7026359
Starting With #2662411 Use Pt# 7002736
695-2/3
Use Prior to Serial #2660861
NOTE: Must Also Order Plug Adaptor 7024962
NOTE: Must Also Order Shutoff Arm 7026359
Starting With #2660861 Use Pt# 7002736
700
Use Regardless of Serial Number

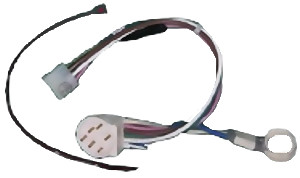

NOTE: FOR Fill Tube Htr/Harness 4202310
NOTE: FOR SHUT-OFF ARM, ORDER 7014697
700-2
Use Regardless of Serial Number
NOTE: FOR SHUT-OFF ARM, ORDER 7014697
700TCI-3
Use Pt# 7002740
700TFI-3
Use Prior to Serial #3100000
Starting With Serial#3100000 Use Pt# 7002740
NOTE: FOR SHUT-OFF ARM, ORDER 7014697
736TCI-3
Use Pt# 7002740
736TFI
Use Pt# 7002740
700BCI-3
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7016700
NOTE: FOR SHUT-OFF ARM, ORDER 7014697
700BFI-3
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7016700
NOTE: FOR SHUT-OFF ARM, ORDER 7014697
801
Use Regardless of Serial Number
NOTE: FOR WIRE HARNESS, ORDER 7014702
NOTE: FOR SHUT-OFF ARM, ORDER 7012821

Make sure you are ordering
the proper icemaker
There are No Refunds!

$189.00

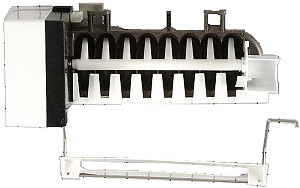

4200522PR
Ice Maker

4200522PR Ice Maker

550, 611, 650, 680, 690
Icemaker Assy
NOTE: FOR INTERNATIONAL APPLICATIONS,
Contact Us for Pt# 4204210 AND 4204230
NOTE: FOR RUDDER ARM, ORDER 7014671
550
Use From Serial# 1274690 to Serial# 1275889
or Alternate Ice Maker Pt# 7002734
Use Prior to Serial# 1274690 & after Serial# 1275889
or Alternate Ice Maker Pt# 4200520
With Harness Pt#7024962
and Shutoff Arm Pt#7026359
611
Use Regardless of Serial#
or Alternate Ice Maker Pt# 7002734
650
Use Regardless of Serial#
or Alternate Ice Maker Pt# 7002734
680
Use Regardless of Serial#
or Alternate Ice Maker Pt# 4200520
With Harness Pt#7024962 and Shutoff Arm Pt#7026359
690
Use Regardless of Serial#
or Alternate Ice Maker Pt# 4200520
With Harness Pt#7024962 and Shutoff Arm Pt#7026359

611-2
Use Prior to Serial# 2627085
or Alternate Ice Maker Pt# 7002734
Starting With Serial# 2627085
Use Pt# 7002736
611G-2
Use Prior to Serial# 2627560
or Alternate Ice Maker Pt# 7002734
Starting With Serial# 2627560
Use Pt# 7002736
650-2
Use Prior to Serial# 2627660
or Alternate Ice Maker Pt# 7002734
Starting With Serial# 2627660
Use Pt# 7002736
650G-2
Use Prior to Serial Serial# 2630836
or Alternate Ice Maker Pt# 7002734
Starting With Serial# 2630836
Use Pt# 7002736
695-2/3
Use Prior to Serial# 2660861
or Alternate Ice Maker Pt# 4200520
With Harness Pt#7024962 and Shutoff Arm Pt#7026359
Starting With Serial# 2660861
Use Pt# 7002736
685-2/3
Use Prior to Serial# 2662411
or Alternate Ice Maker Pt# 4200520
With Harness Pt#7024962 and Shutoff Arm Pt#7026359
Starting With Serial# 2662411
Use Pt# 7002736

Make sure you are ordering
the proper icemaker
There are No Refunds!


$189.00

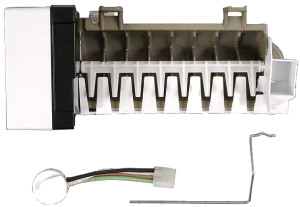

4201760PR
Ice Maker

4201760PR Ice Maker

201RIM, 245
201RIM
Use regardless of number

245
Use Prior to Serial# 717272

Starting with Serial# 717272,
Use Pt# 4200520

Make sure you are ordering
the proper icemaker
There are No Refunds!

$274.00


7002734PR Ice Maker

7002734PR Ice Maker

550, 611, 650, 680, 690, 685-2, 695-2
NOTE: FOR INTERNATIONAL APPLICATIONS,
Contact Us for 4204210 AND 4204230
NOTE: FOR RUDDER ARM, ORDER 7014671
550
Use From Serial #1274690 to #1275889
Prior to Serial #1274690 & after
Serial #1275889 Use Pt# 4200520
680
Use Ice Maker Pt# 4200520
With 7026359 and 7024962

690
Use Ice Maker Pt# 4200520
With 7026359 and 7024962

611
Use Prior to Serial #2627085
Starting With #2627085 Use Pt# 7002736
611G
Use Prior to Serial #2627560
Starting With #2627560 Use Pt# 7002736
650
Use Prior to Serial #2627660
Starting With #2627660 Use Pt# 7002736
650G
Use Prior to Serial #2630836
Starting With #2630836 Use Pt# 7002736
695-2
Prior to Serial #2660861
Use Ice Maker Pt# 4200520
With 7026359 and 7024962

Starting With #2660861 Use Pt# 7002736
685-2
Prior to Serial #2662411
Use Ice Maker Pt# 4200520
With 7026359 and 7024962

Starting With #2662411 Use Pt# 7002736

$274.00


7002736PR Ice Maker

7002736PR Ice Maker

611-3, 611G-3, 650-3,
650G-3, 695-3, 685-3

Icemaker Assy
NOTE: INCLUDES 7014671 RUDDER ARM
611-3
Use Starting With Serial #2627085
Prior to Serial #2627085 Use Pt# 7002734
611G-3
Use Starting With Serial #2627560
Prior to Serial #2627560 Use Pt# 7002734
650-3
Use Starting With Serial #2627660
Prior to Serial #2627660 Use Pt# 7002734
650G-3
Use Starting With Serial #2630836
Prior to Serial #2630836 Use Pt# 7002734
695-3
Use Starting With Serial #2660861
Prior to #2660861 Use Pt# 4200520
With 4202730 And 7024962
685-3
Use Starting With Serial #2662411
Prior to #2662411 Use Pt# 4200520
With 4202730 And 7024962

$274.00

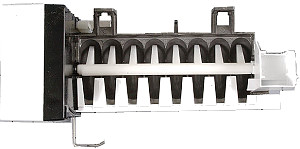

7002738PR Ice Maker
Replaces Part# 4200521

7002738PR Ice Maker

532, 542, 561, 601F, 632,
642, 632-2/3, 642-2/3

532
Use From Serial#M/P1283390 to M/P1284539
and Starting with Serial #M/P1350590

Prior to #M/P1350590 except between
#M/P1283390 to M/P1284539


Use Pt# 4200520
542
Use Starting with Serial #M/P1351190
Prior to Serial #M/P1351190
Use Pt# 4200520
561
Use Starting with Serial #M/P1350840
Prior to Serial #M/P1350840
Use Pt# 4200520
601F
Use Prior to Serial #M2631361/P2626960
Starting With Serial #M2631361/P2626960
Use Pt# 7002740
632-2&3
Use Prior to Serial #2648771
Starting With Serial #2648771
Use Pt# 7002740
642-2&3
Use Prior to Serial #2646995
Starting With Serial #2646995
Use Pt# 7002740

Make sure you are ordering
the proper icemaker
There are No Refunds!

$189.00


7002740PR Ice Maker

7002740PR Ice Maker

601F-2&3, 661-2&3, 632-2&3,
642-2&3, BI-36F, BI-36S, BI-42S, BI-42SD,
BI-48S, BI-48SD, IC-27F, 736T-3, 700T-3,
ID-30FI, ID-30CI, ID-36CI, ID-24FI, IC-24CI,
IC-18FI, IC-30FI, IT-30FI, IT-36CI, IC-24FI,
IC-36FI
601F-2&3

Use Starting With Serial #M2631361/
P2626960

Prior to Serial #M2631361/P2626960
Use Pt# 7002738
661-2&3
Use Regardless of Serial Number
632-2&3
Use Starting With Serial #2648771
Prior to Serial #2648771 Use Pt# 7002738
642-2&3
Use Starting With Serial #2646995
Prior to Serial #2646995 Use Pt# 7002738
IC-27F
Use Regardless of Serial Number
700TC/I-3
Use Regardless of Serial Number

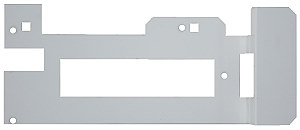

NOTE: Prior to #2598481 Also Order 7023022
700TF/I-3
Use Starting With #3100000
NOTE: Prior to #3100000 Use Pt# 4200520
736TC/I
Use Regardless of Serial Number
NOTE: Prior to #2591029 Also Order 7023022
736TF/I
Use Regardless of Serial Number
NOTE: Prior to #2591029 Also Order 7023022
BI-Series Use Regardless of Serial Number
NGI Use Regardless of Serial Number

$274.00


7002748PR Ice Maker

7002748PR Ice Maker

2011ICE, 2711, 2811, 550
Icemaker Assy
NOTE: IF JUST HARNESS IS NEEDED
ORDER Pt# 7016575
2011ICE
Use Regardless of Serial Number
2711
Use Regardless of Serial Number
NOTE: DOES NOT INCLUDE ICE LEVEL MECHANISM
IF NEEDED, ORDER 7019354
DOES NOT INCLUDE ICEMAKER BRACKET
IF NEEDED, ORDER 7016923
2811
Use Regardless of Serial Number
NOTE: DOES NOT INCLUDE ICE LEVEL MECHANISM
IF NEEDED, ORDER 7019354
DOES NOT INCLUDE ICEMAKER BRACKET
IF NEEDED, ORDER 7016923
550
Use Prior to #M/P681166 and between
#M681565 to #M702716/P700765

Additional Serial Breaks: Use Pt# 4200520
NOTE: DOES NOT INCLUDE ICE LEVEL MECHANISM
IF NEEDED, ORDER 4160600(NLA)
DOES NOT INCLUDE FRONT ICEMAKER
BRACKET. IF NEEDED, ORDER
7016923

$274.00


W10122536PR Icemaker Module

Replaces Part# 628366

Icemaker Module
Motor module assembly

Make sure you are ordering
the proper icemaker
There are No Refunds!

$88.00


4201460 Dual Ice Maker Inlet Valve
Dual Water Valve Package
590
Use Regardless of Serial Number

$136.00


7014677 Dual Ice Maker Inlet Valve
Dual Water Valve Package
680, 690
Use Regardless of Serial Number
685-2
Use Prior to Serial #2271174
Starting With Serial#2271174
Use Pt# 7004266
695-2/3
Use Prior to Serial #2269189
Starting With Serial#2269189
Use Pt# 7004266
$126.00


7004266 Dual Ice Maker Inlet Valve
685, 685-2, 685-3, 695, 695-2, 695-3
685-2
Use Starting w/Serial #2271174
Prior to Serial #2271174
Use Pt# 7014677
695-2
Use Starting w/Serial #2269189
Prior to Serial #2269189
Use Pt# 7014677
685-3
Use Regardless of Serial Number
695-3

Use Regardless of Serial Number
$129.00


4201450 Ice Maker Inlet Valve
501F
Use Starting with Serial# M834904/P836154
Prior to Serial# M834904/P836154
Use Pt# 4201440
511
Use Starting with Serial# M830454
Prior to Serial# M830454
Use Pt# 4201440
532
Use From Serial# M/P786669 to #M/P787068 and
From #M824754/P827404 to #M/P1283390
Also from M/P1284539 to #M/P1350590

Prior to Serial# M/P786669 and from #M/P787068
to #M824754/P827404
Use Pt# 4201440
From Serial# M/P1283390 to #M/P1284539 and
starting with #M/P1350590
Use Pt# 4202790
542
Use Prior to Serial# M/P1351190
Starting with Serial# M/P1351190
Use Pt# 4202790
550
Use Starting with Serial# M824354/P823954
Prior to Serial# M824354/P823954
Use Pt# 4201440
561
Use From Serial# M825954/P823654 to #M/P1350840
Prior to Serial# M825954/P823654
Use Pt# 4201440
Starting with Serial# M/P1350840
Use Pt# 4202790
700TCI
Use Regardless of Serial#
700TFI
Use Regardless of Serial#
700BFI
Use Regardless of Serial#
$96.00


4201440 Ice Maker Inlet Valve
501F
Use Prior to Serial# M834904/P836154
Starting With Serial# M834904/P836154
Use Pt# 4201450
511
Use Prior to Serial# M830454
Starting with Serial# M830454
Use Pt# 4201450
532
Use Prior to Serial #M/P786669 and from
#M/P787068 to #M824754/P827404

From Serial# M/P786669 to #M/P787068 and from
#M824754/P827404 to #M/P1283390 also
from #M/P1284539 to #M/P1350590
Use Pt# 4201450
From Serial# M/P1283390 to #M/P1284539 and
starting with #M/P1350590
Use Pt# 4202790
550
Use Prior to Serial# M824354/P823954
Starting With Serial# M824354/P823954
Use Pt# 4201450
561
Use Prior to Serial# M825954/P823654
From Serial# M825954/P823654 to #M/P1350840
Use Pt# 4201450
Starting with Serial# M/P1350840
Use Pt# 4202790
200/300
Use Regardless of Serial Number
$88.00


4202790 Ice Maker Inlet Valve
532
Use From Serial# M/P1283390 to #M/P1284539 and
Starting with #M/P1350590

From Serial# M/P786669 to #M/P787068 and
#M824754/P827404 to #M/P1283390 and
#M/P1284539 to #M/P1350590
Use Pt# 4201450
Prior to Serial# M/P786669 and from #M/P787068
to #M824754/P827404
Use Pt# 4201440
542
Use Starting with Serial# M/P1351190
Prior to Serial# M/P1351190
Use Pt# 4201450
561
Use Starting with Serial# M/P1350840
From Serial# M825954/P823654 to #M/P1350840
Use Pt# 4201450
Prior to Serial# M825954/P823654
Use Pt# 4201440
600
Use Regardless of Serial Number
600-2
Use Regardless of Serial Number
600-3
Use Regardless of Serial Number
700-2
Use Regardless of Serial Number
700TCI-3
Use Prior to Serial# 2421189
Starting with Serial# 2421189
Use Pt# 7004267
700TFI-3
Use Prior to Serial# 2421189
Starting with Serial# 2421189
Use Pt# 7004267
736TCI-3
Use Prior to Serial# 2327045
Starting with Serial# 2327045
Use Pt# 7004267
700BCI-3
Use Prior to Serial# 2421189
Starting with Serial# 2421189
Use Pt# 7004267
700BFI-3
Use Prior to Serial# 2421189
Starting with Serial# 2421189
Use Pt# 7004267
$94.00


7004267 Ice Maker Inlet Valve
700TCI-3
Use Starting with Serial #2421189

Prior to Serial #2421189
Use Pt# 4202790
700TFI-3
Use Starting with Serial #2421189

Prior to Serial #2421189
Use Pt# 4202790
736TCI-3
Use Starting with Serial #2327045

Prior to Serial #2327045
Use Pt# 4202790
700BCI-3
Use Starting with Serial #2421189

Prior to Serial #2421189
Use Pt# 4202790
700BFI-3
Use Starting with Serial #2421189

Prior to Serial #2421189
Use Pt# 4202790
UC-24C
Use Regardless of Serial Number
$84.00


Replacement Harnesses
Used on New Style Modular Ice Makers


7014702PR Replacement Round Plug Adaptor

Replaces Pt# 3022730
Plug Adapter Harness - Round
249FF/I Use Ice Maker Harness Pt#
7020748
$32.00


7016700PR Replacement Harness

Replaces Pt# 3025470
Replaces Pt# 7024058
700BF/I-3, 700BC/I-3
Plug Harness Adaptor
Use Regardless of Serial Number
$47.00


7015689PR Replacement Harness

Replaces Pt# 4322680
501F, 511, 532, 542, 550, 561, 590
Plug Harness Adaptor
$29.00


7024962PR Replacement Harness
680, 690, 685-2/3, 695-2/3
Plug Harness Adaptor
$26.00


7020748PR Replacement Harness
249FF/I
Icemaker Harness
$33.00



4202310PR Replacement Tube Heater/Harness Kit
700
Fill Tube Heater & Harness Kit
$62.00


Replacement Shut-off Arms

7012821PR Short Shutoff Arm
Replaces Pt# 3140181

201F, 211, 215F, 241, 244,
245, 251, 361, 2411, 2511, 3211
, 801
Arm, Icemaker Short SVCE
NOTE: For UC-24C Use Pt# 7012820
Contact Us to order Pt# 7012820

$26.50

7016662PR Shut off Arm
Replaces Pt# 3140220
22IM
Shut off Arm
$26.50


7016481PR Shut off Arm

Replaces Pt# 3140210
249FF
Shutoff Arm - Flat
$47.00


7014697PR Shut off Arm

Replaces Pt# 3140200
501F, 532, 542, 561, 700TC/I,
700TF/I, 700BF/I, 700BC/I-3

Icemaker Shut-off Arm
501F
Use Regardless of Serial Number
532
Use Prior to Serial #1350590
542
Use Prior to Serial #1351190
561
Use Prior to Serial #1350840
700TC/I
Use Starting With Serial #M1207990
Prior to #1207990 Use Pt# 4202270
700TF/I
Use Starting With Serial #1207990
Prior to #1207990 Use Pt# 4202270
700BF/I
Use Starting With Serial #1207990
Prior to #1207990 Use Pt# 4202270
700BC/I-3
Use Regardless of Serial Number

$19.00


4202730PR Shut off Arm

511, 550, 590
Ice Level Arm Package
NOTE: DOES NOT INCLUDE
MODULAR ICEMAKER IF NEEDED
Use Pt# 4200520
511
Use Regardless of Serial Number
550
Use From #M/P681166 to #M/P681565,
also from #M702716/P700765 to #M/P1274690
and starting with #M/P1275889

Prior #M/P681166 and from #M/P681565
to #M702716/P700765
Use Ice Maker Pt# 7002748
From #M/P1274690 to #M/P1275889
Use Ice Maker Pt# 4200522

590
Use Regardless of Serial Number
NOTE: SPACERS ARE NO LONGER INCLUDED
IF SPACERS ARE NEEDED, Contact Us,
Use Pt# 4202650
680/690
Use Pt# 7026359

$62.00


7026359PR Replacement Shut off Arm

680, 690, 685, 695
Icemaker Shutoff Arm
680/690
Use Regardless of Serial Number
Use Pt# 7024962 Harness When Installing
Pt# 4200520 Ice Maker
695-2/3
Use Prior to Serial #2660861
Use Pt# 7024962 Harness When Installing
Pt# 4200520 Ice Maker
685-2/3
Use Prior to Serial #2662411
Use Pt# 7024962 Harness When Installing
Pt# 4200520 Ice Maker

$58.00


7014671 Icemaker Rudder
Arm

Arm, Icemaker Rudder
550, 611, 650, 680, 690,
611-2, 650-2, 685-2, 695-2
NOTE:
To Reduce Ice Level On Models 611, 650,
611-2 Or 650-2, Use Pt# 7016326

550
Use From Serial #1274690 to #1275889
From Serial #M/P681166 to #M/P681565, Also
From #M702716/P700765 to #M/P1274690 And
Starting With Serial #M/P1275889
Use Part# 4202730
$49.00


7016326 Icemaker Rudder Arm
No Longer Available
Arm, Icemaker SVCE (611, 650)
NOTE: Only Use to Reduce Ice Level

If Standard Rudder Arm is Needed, Use Pt# 7014671


7014668 Icemaker Arm

Arm, Icemaker
-Doesn't come with connecting rod
Connecting Rod listed below Part# 7015920

700TFI,700TCI,700BFI,
700TFI-2,700TCI-2,700BFI-2,700TCI-3
700TFI-3,736TCI-3,700BCI-3
700BFI-3, 648PROG,661-2/3
700/700-2
Use Regardless of Serial Number
700BC/I-3
Use Regardless of Serial Number
700BF/I-3
Use Regardless of Serial Number
700TC/I-3
Use Regardless of Serial Number
736TC/I-3
Use Regardless of Serial Number
700TF/I-3
Use Regardless of Serial Number
648PRO
Use Prior to Serial #2820930
Starting With #2820930 Use Pt# 7011189
661-2/3 Use 3421220

$49.80


7015920 Icemaker Rudder Arm
Arm Connecting Rod, Icemaker (736TCI3)
700TFI,700TCI,700BFI,
700TFI-2,700TCI-2,700BFI-2,700TCI-3
700TFI-3,736TCI-3,700BCI-3
700BFI-3, 648PROG,661-2/3
-Works with Arm above Part# 7014668
$9.80


7023022 Icemaker Rudder Arm
Bracket, Icemaker
700TF/I-3,700TC/I-3,
736TC/I-3,736TF/I-3)
NOTE: Also Used On Early 700 Series When Using
The 7042073 Ice Maker
$47.75

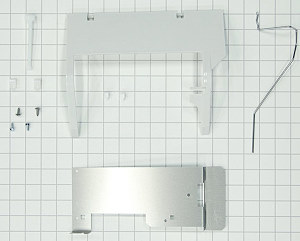

4202270PR Ice Maker Arm Assembly
700TCI, 700TFI, 700BFI
Ice Level Arm Assembly
$89.00


If you have any questions, please let us know.

Contact Email Address: Rtnoww@aol.com

Sorry, but we are so busy filling orders, we don't have time to answer the phone.
If you have questions, please email us.


Home | About Us | Wholesale Application | Parts Distributor Login | Service Company Login | Contact Us

Sale on Evaporators | Heat Exchangers | Compressors | Filter/Drier | Condenser Motors

Slide Rails | Light Bulbs | Ice Makers | Door Gaskets | Switches | Controls | Heaters | More...

Model & Serial Tag Location | Return Policy

RefrigeratorPartReplacements.com © 2013 All Rights Reserved

Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
Sub-Zero Parts Sub-Zero Parts, sub-zero parts subzero parts, subzero refrigerator parts sub-zero refrigerator parts
